In this Photoshop Lesson, we’ll learn about ‘Free Transform’, ‘Transform command in Photoshop‘. Free Transform and Transform commands are available under Edit menu in Photoshop.

My name is Lalit Adhikari and we are at LTY. Let’s begin!



Related Topics:


Free Transform

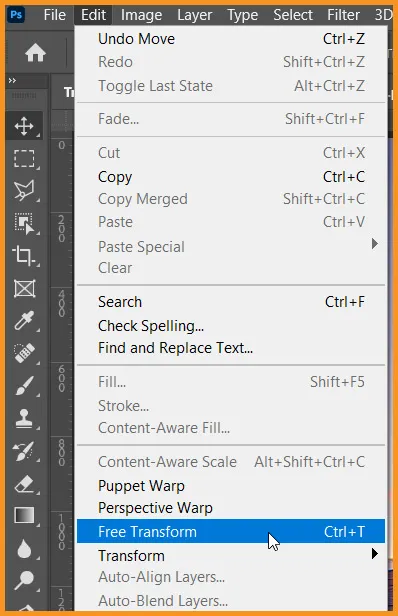

Free Transform command under Edit menu in Photoshop
Free Transform command under Edit menu

Free Transform command in Photoshop helps to scale and rotate images or text. Since updated in Photoshop 21.0 which was released in November 2019, transforming any layer type by dragging corner handle will scale the layer proportionally by default.

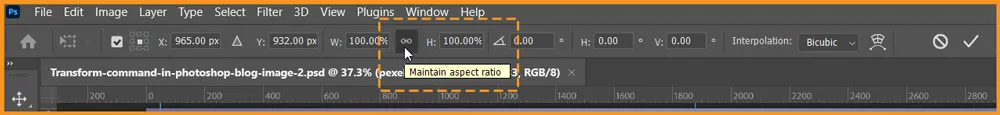

Option Bar of Free Transform in Photoshop
Chain icon denoting Maintains Aspect Ratio property of Free Transform

As shown in the image above, it is denoted by a chain icon in option bar of Free Transform in Photoshop. Simply click and break this chain to not letting Photoshop maintain aspect ratio automatically.


Related Topics:


Example

I have chosen following images for this tutorial:

I’ve opened the ‘House’ image in the photoshop then placed the image of man in the document. Removed the background from the man image. It looks like as shown below:

man image placed on other image
After removing background from man image
  • Go to Edit > Free Transform

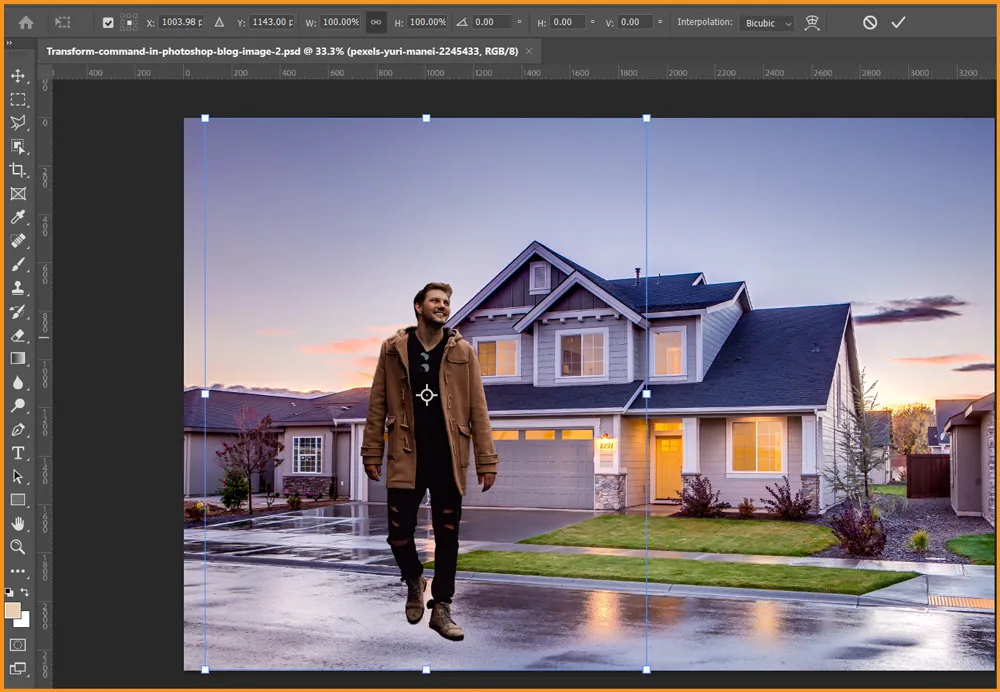

Free Transform applied to image in photoshop
Free Transform command applied

To reduce the size of the man, I’ll click and drag the bounding box from top right corner and move him to the back as shown below.

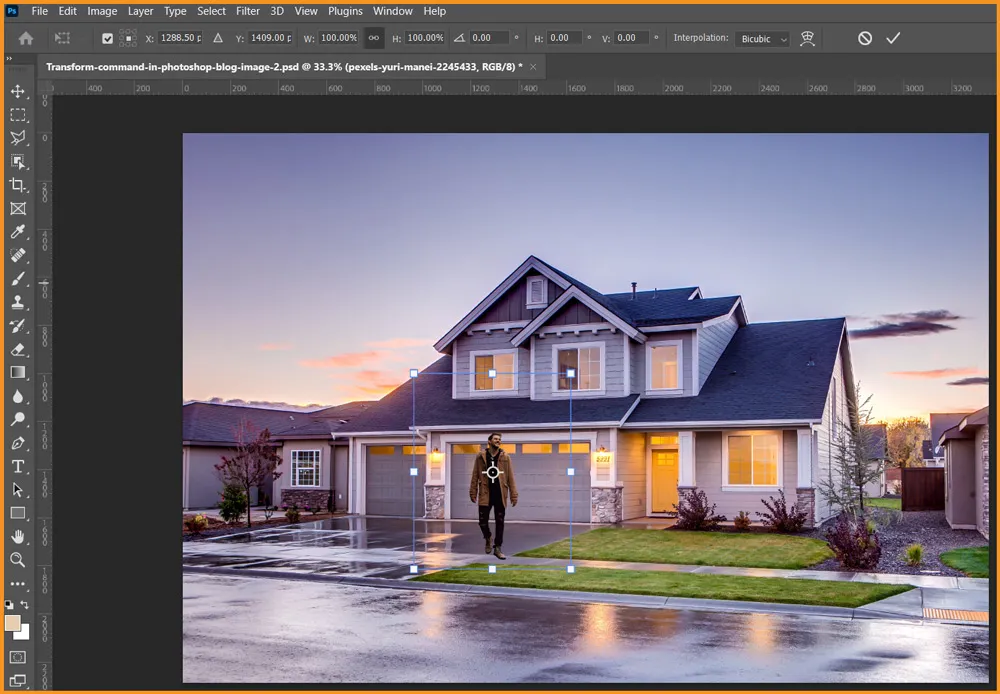

size of image reduced
down-scaled the man image

Related Topics:


Bounding Box of Free Transform

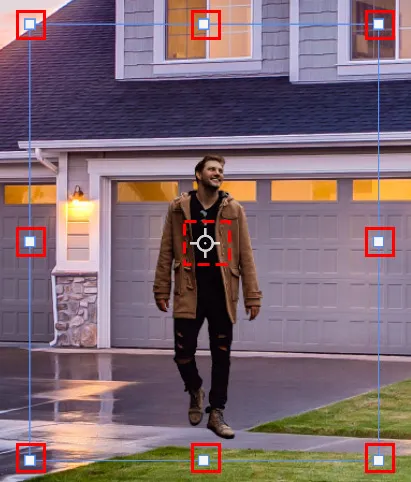

Bounding box and Reference Point of Free Transform
Bounding Box and Reference point (dash lines)

Related Topics:


Option bar with Free Transform

Option bar with Free Transform in Photoshop
Options for Free Transform

Option bar has many useful options with Free Transform. Most of these are self-explanatory.

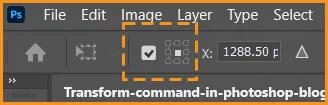

Reference Point

Reference Point location for Free Transform in Photoshop
Reference Point Location

It is used to define Reference Point for any transformation to be done.

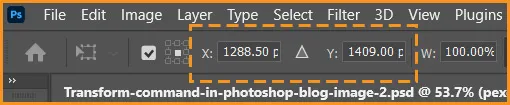

Position

Position coordinates
Position

It is used to define the position in X- and Y-axis.


Size

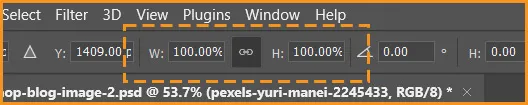

Size
Width and Height input boxes

It is used to define the size change in percentage. The center chain icon represents that it maintains aspect ration. We can click on the icon to break the chain.


Rotation

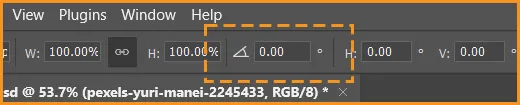

Rotation
Rotation

It is used to rotate the image to any numeric value.

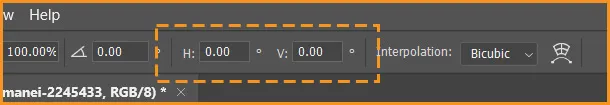

Skew

Skew
Skew options

It is used to skew the image to any certain numeric values.

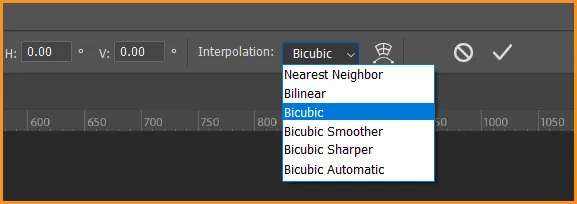

Interpolation

Interpolation
Interpolation method

It is used to define the Interpolation method for the process of Transformation. These methods have been defined in detail in our Photoshop Lesson on, ‘How to enlarge an image in Photoshop‘.


Warp mode

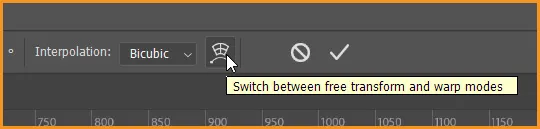

Warp modes
Warp modes

This icon is used to switch from Free Transform to Warp modes. As in our current situation, we’ve a layer with layer linked layer mask, it will show us the following error:

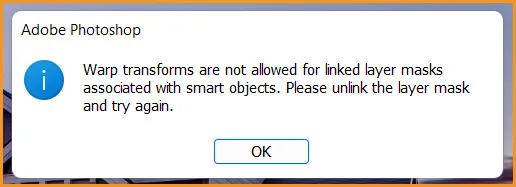

Warp transforms are not allowed for linked layer masks associated with smart objects.
Error message

This is due to our linked layer mask to our smart object. I’ll simply convert the whole layer to smart object again. So, the mask will be inside the new smart object. Then I’ll apply warp transform.

Warp transform applied
After switching to Warp mode

Here, we can drag the anchor points or associated handles for desired results.


Related Topics:

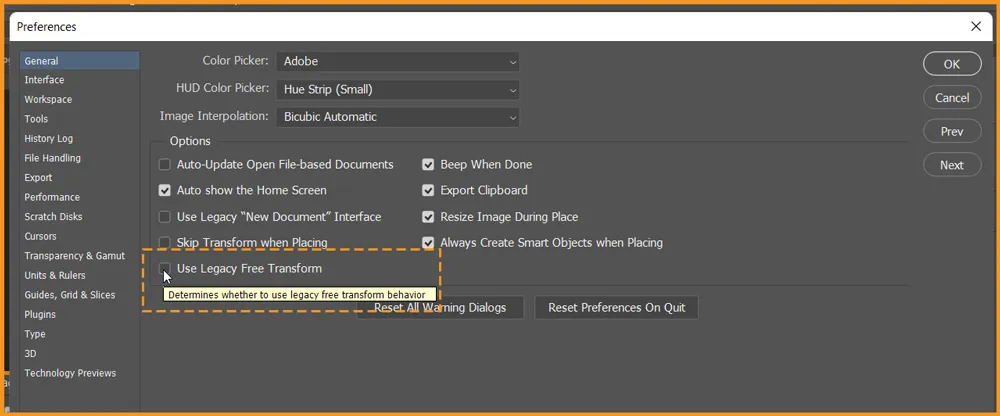

How to switch back to legacy transform behaviour

Go to Edit > Preferences > General

Then select Legacy Free Transform.

Use Legacy Free Transform option in Photoshop Preferences
Use Legacy Free Transform option in Preferences

Related Topics:


Transform

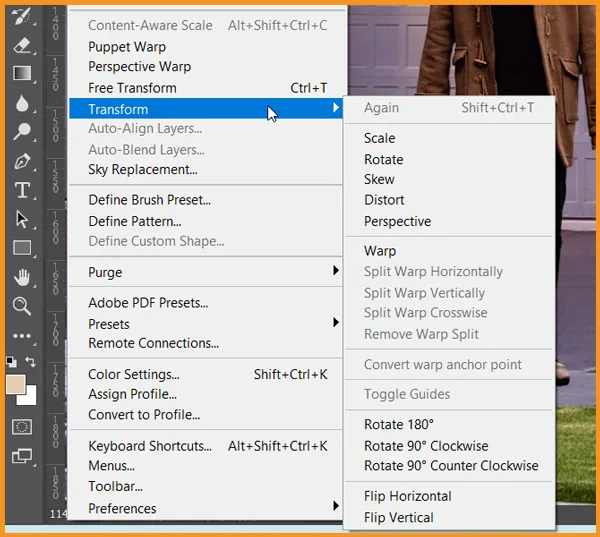

Transform command under Edit menu in Photoshop
Transform command under Edit menu in Photoshop

Transform in Photoshop means to scale, shrink, enlarge, skew, distort, rotate or change the perspective of a layer, selection or shape.

We can apply transformations to a selection, an entire layer, multiple layers or a layer mask. We can also apply transformations to a path, a vector shape, a vector mask, a selection border or an alpha channel.

Remember: Transforming affects image quality when we manipulate the pixels. To apply non-destructive transformations to raster images, use Smart Objects.

Transforming a vector shape or path is always non-destructive because we’re only changing the mathematical calculations producing the object.


Related Topics:


  • Scale: Scaling refers to enlarging or reducing an item relative to its reference point. Reference point is the fixed point around which transformations are performed. We can scale horizontally, vertically or both horizontally as well as vertically.
  • Rotate: Turns an item around a reference point. By default, this point is at the center of the object; however, we can move it to another location which could be outside the item.
  • Skew: It is slanting of an item vertically and horizontally.
  • Distort: It is used to stretch an item in all directions.
  • Perspective: It is used to apply one-point perspective to an item.
  • Warp: It is used to manipulate the shape of an item.
  • Rotate 180, Rotate 90 CW, Rotate 90 CCW: It rotates the item by the specified number of degrees, either clockwise or counter-clockwise.
  • Flip: It is used to flip the item vertically or horizontally.
